Steunisolatoren (voor buiten)

[H4-60 BROWN] Brown porcelain insulator 7,2 KV - Height 95 mm
Female/female M16 - Flexion - 400 daN

Brown porcelain insulator 7,2 KV - Height 95 mm Female/female M16 - Flexion - 400 daN

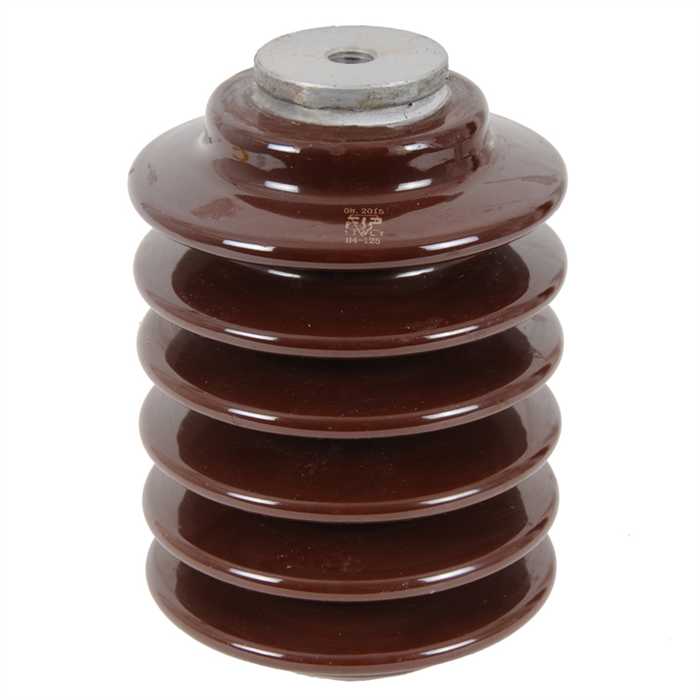

[H4-125-P] Ceramic outdoor post Insulator
Max Voltage : 24 kV - Top and base : M16/M16
Height : 210 mm - Overall Diameter 127 mm
Flexural strenght : 4000 N - Creepage length : 455 mm

Ceramic outdoor post Insulator Max Voltage : 24 kV - Top and base : M16/M16 Height : 210 mm - Overall Diameter 127 mm Flexural strenght : 4000 N - Creepage length : 455 mm

[H8-170/AM] Ceramic outdoor post Insulator
Max Voltage : 30/36kV
Height : 300 mm - Overall Diameter 175 mm
Flexural strenght : 8000 N
Min creepage length : 1150 mm
Top and base : M24/M24

Ceramic outdoor post Insulator Max Voltage : 30/36kV Height : 300 mm - Overall Diameter 175 mm Flexural strenght : 8000 N Min creepage length : 1150 mm Top and base : M24/M24

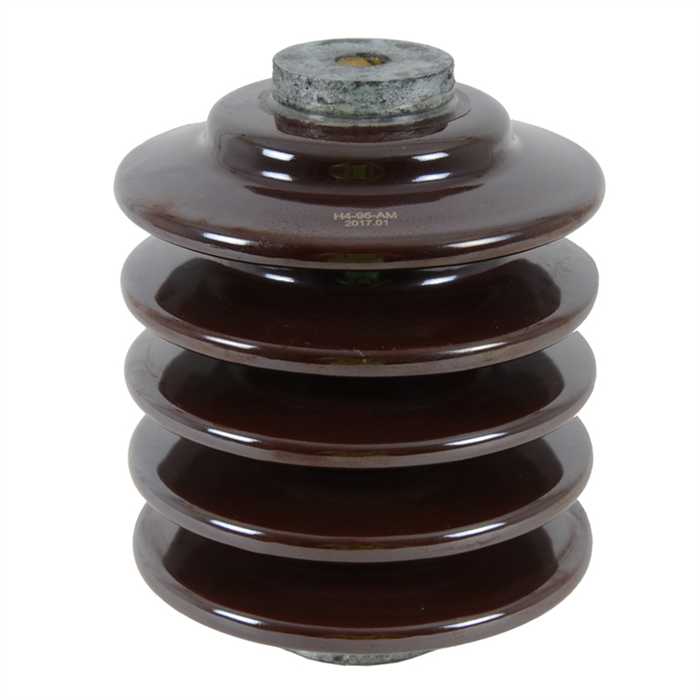

[H4-95/AM] Bruine geglazuurde porseleinen isolator voor buitendienst - M16

Bruine geglazuurde porseleinen isolator voor buitendienst - M16

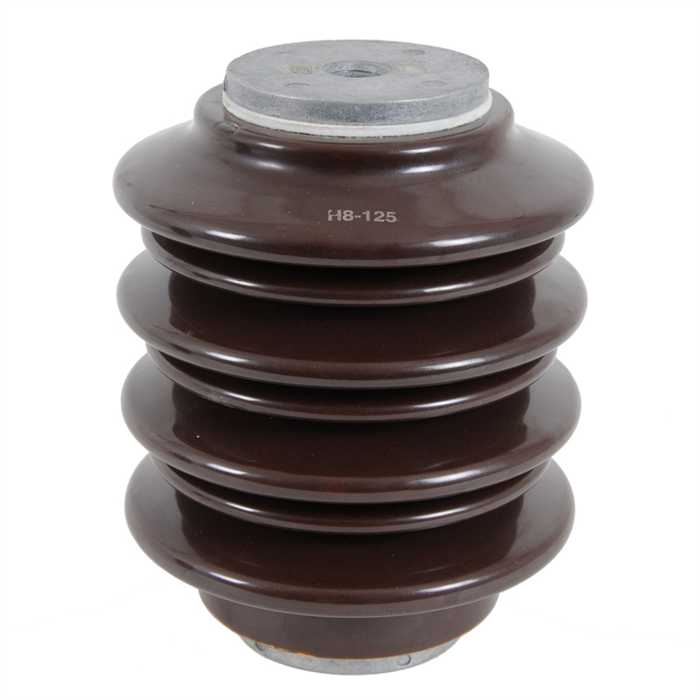

[H8-125-sp] Post insulator outdoor porcelain
Max Voltage : 24 kV
Height : 210 mm
Flexural strenght : 8000 N
Fixation : M20/M20

Post insulator outdoor porcelain Max Voltage : 24 kV Height : 210 mm Flexural strenght : 8000 N Fixation : M20/M20

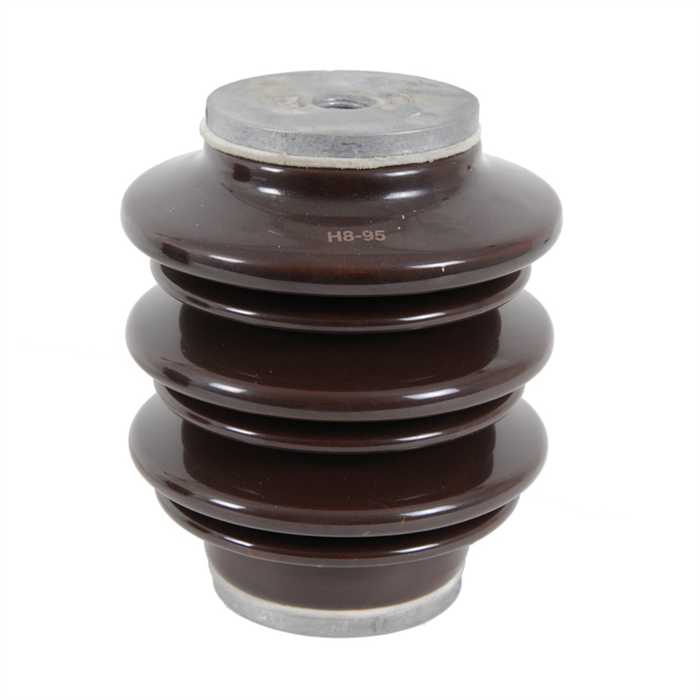

[H8-95-sp] Post insulator outdoor porcelain
Max Voltage : 15/17,5 kV
Height : 175 mm
Flexural strenght : 8000 N
Fixation : M20/M20

Post insulator outdoor porcelain Max Voltage : 15/17,5 kV Height : 175 mm Flexural strenght : 8000 N Fixation : M20/M20
