Cyclo epoxy (outdoor)

Sort By Sort By: Featured
[CO5-170 B107] Post Insulator outdoor cycloaliphatic epoxy – brown colour UN 36 kV - 5000 N - H 360mm - Top M10 +2xM6 - Base M16

Post Insulator outdoor cycloaliphatic epoxy – brown colour UN 36 kV - 5000 N - H 360mm - Top M10 +2xM6 - Base M16

[CO4-170 B108] OUTDOOR cycloaliphatic insulator – brown colour UN 36 kV - 5000 N - H 360mm - Top M16 - Base M16

OUTDOOR cycloaliphatic insulator – brown colour UN 36 kV - 5000 N - H 360mm - Top M16 - Base M16

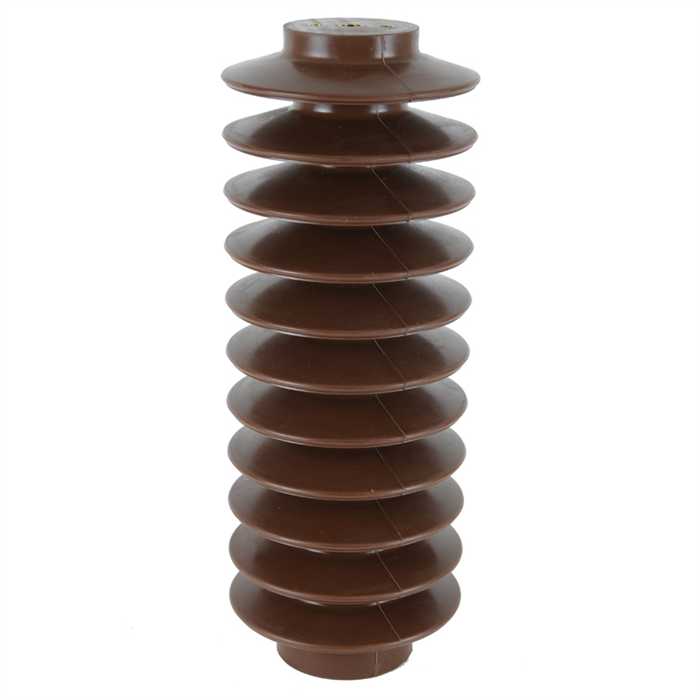

[CO6-170 B288] Post Insulator outdoor cycloaliphatic epoxy – brown colour UN 36 kV - 6000 N - H 360mm - Top M16 +2xM10 - Base M24

Post Insulator outdoor cycloaliphatic epoxy – brown colour UN 36 kV - 6000 N - H 360mm - Top M16 +2xM10 - Base M24

[SPI200-8 B4323] Cyclo post insulator for outdoor use For opertaing Voltage 36 kV - Flexion 8000 N

Cyclo post insulator for outdoor use For opertaing Voltage 36 kV - Flexion 8000 N

[SPI200-8 B336] Post Insulator outdoor epoxy – brown colour UN 36 kV - 8000 N - H 360mm - Top M16 +2xM10 - Base M20

Post Insulator outdoor epoxy – brown colour UN 36 kV - 8000 N - H 360mm - Top M16 +2xM10 - Base M20

[SPI250-4 B4421] OUTDOOR cycloaliphatic insulator – brown colour Service Voltage : 36/52 kV Power frequency, wet (50 Hz, 1 min) : >95 kV Lightning impulse (1.2/50 µs) : >250 kV Height : 500 mm - Overall Diameter 170 mm Creepage length = 1547 mm Flexion resist

OUTDOOR cycloaliphatic insulator – brown colour Service Voltage : 36/52 kV Power frequency, wet (50 Hz, 1 min) : >95 kV Lightning impulse (1.2/50 µs) : >250 kV Height : 500 mm - Overall Diameter 170 mm Creepage length = 1547 mm Flexion resist

[SPI250-4 B4661] OUTDOOR cycloaliphatic insulator – brown colour Service Voltage : 36/52 kV Power frequency, wet (50 Hz, 1 min) : >95 kV Lightning impulse (1.2/50 µs) : >250 kV Height : 500 mm - Overall Diameter 170 mm Creepage length = 1547 mm Flexion resist

OUTDOOR cycloaliphatic insulator – brown colour Service Voltage : 36/52 kV Power frequency, wet (50 Hz, 1 min) : >95 kV Lightning impulse (1.2/50 µs) : >250 kV Height : 500 mm - Overall Diameter 170 mm Creepage length = 1547 mm Flexion resist

[B4800] Pantograph support Insulators in cycloaliphatic resin Highest voltage for equipment (Um) : 25 kV Creepage distance : 820 mm - Height : 302 mm Top fixaton : M16 - Fixation holes : 4xØ18mm (position 120x150)

Pantograph support Insulators in cycloaliphatic resin Highest voltage for equipment (Um) : 25 kV Creepage distance : 820 mm - Height : 302 mm Top fixaton : M16 - Fixation holes : 4xØ18mm (position 120x150)
