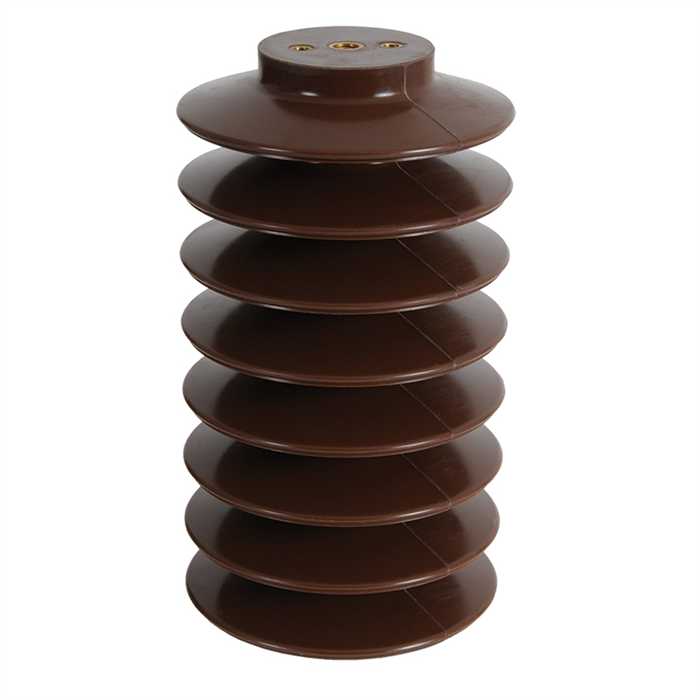

OUTDOOR cycloaliphatic insulator – brown colour UN 24 kV - 4000 N - H 280mm - Top M10 +2xM6 - Base M16
This product has no valid combination.
Internal Reference:
CO4-125/2 B399
Variants Default Code:
CO4-125/2 B399
Specifications
| Height | 280 mm |
| Operating voltage of the insulators | 24 kV AC |
| Color | Brown |
| Top insert | M10 + 2xM6 |
| Bottom insert (hex) | M16 |
| Insert material | Brass |
| Creepage distance | 824 mm |
| Material | Cycloaliphatic |
| Flexural | 4000 N (400 daN) |
