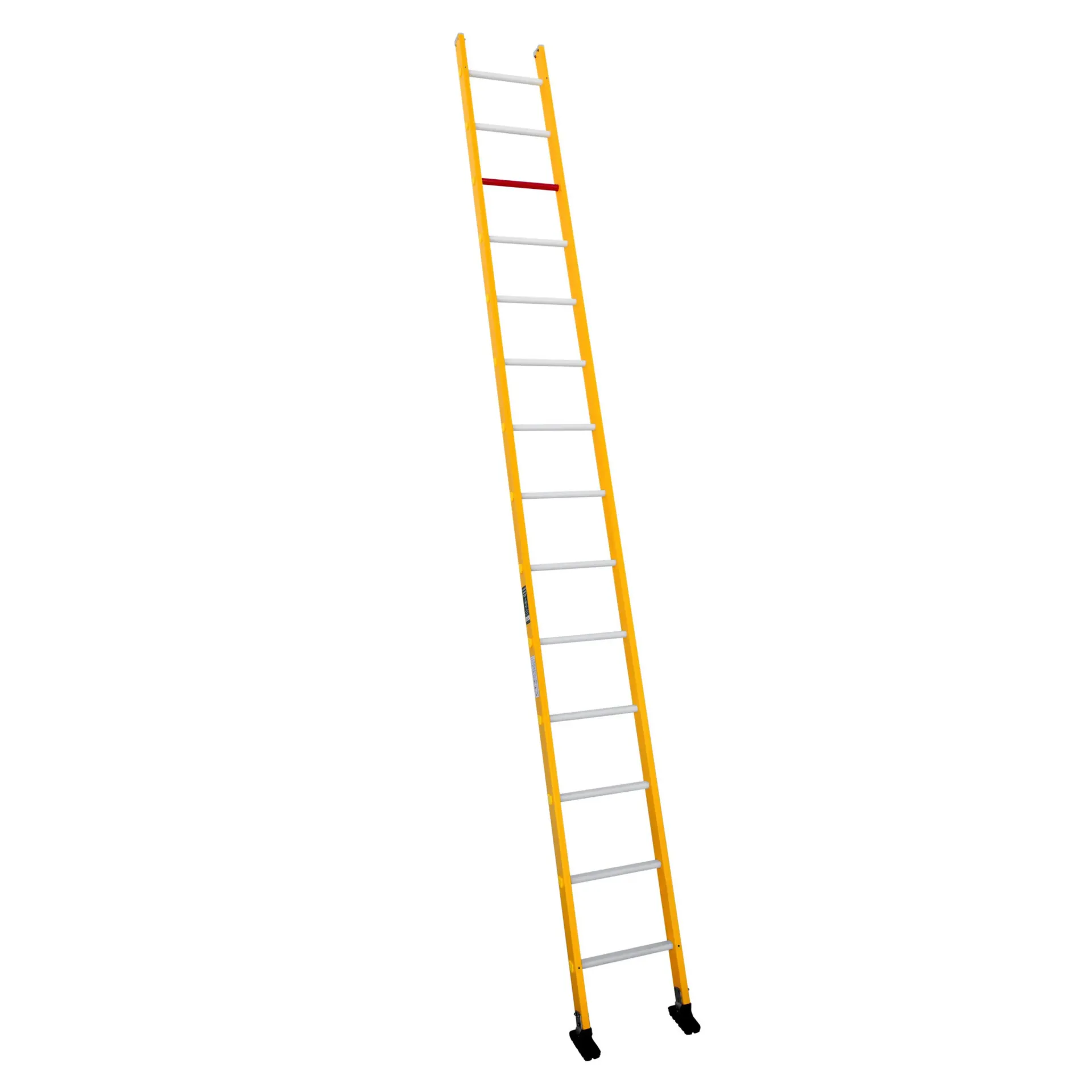

Single insulated ladder – fiberglass stiles and rungs – compliant with: EN 131 – EN 61478

Insulates against electrical and thermal hazards.
Antimagnetic and resistant to moisture, acids, corrosion, and ultraviolet radiation.
30 mm wide fiberglass rungs, slip-resistant, remaining in a horizontal position during ladder use.
Width: 400 mm
Distance between rungs: 28 cm
Rubber feet or tilting ground shoes.
Fittings and fasteners made of stainless steel.
Stiles closed using ladder feet.
Rungs fixed using end caps.
Manufactured in accordance with the EN 131 ladder standard and EN 50528 “Insulating ladders for use on or near low-voltage electrical installations
Insulation tests up to 100 kV according to EN 61478 “Live working – ladders made of insulating material”.

Number of rungs – Ladder length

General conditions
Delivery time: 2-3 working days

Variants Default Code: BINFS105␞BINFS106␞BINFS107␞BINFS108␞BINFS109␞BINFS110␞BINFS111␞BINFS112␞BINFS113␞BINFS114␞BINFS115␞BINFS116␞BINFS117␞BINFS118␞BINFS119␞BINFS120␞BINFS121

Specifications

Number of rungs – Ladder length

5 rungs – Length 1.485 m (with fixed feet), 6 rungs – Length 1.765 m (with fixed feet), 7 rungs – Length 2.045 m (with fixed feet), 8 rungs – Length 2.325 m (with fixed feet), 9 rungs – Length 2.65 m (with fixed feet), 10 rungs – Length 2.99 m, 11 rungs – Length 3.27 m, 12 rungs – Length 3.55 m, 13 rungs – Length 3.83 m, 14 rungs – Length 4.11 m, 15 rungs – Length 4.39 m, 16 rungs – Length 4.67 m, 17 rungs – Length 4.95 m, 18 rungs – Length 5.23 m, 19 rungs – Length 5.51 m, 20 rungs – Length 5.79 m, 21 rungs – Length 6.07 m
