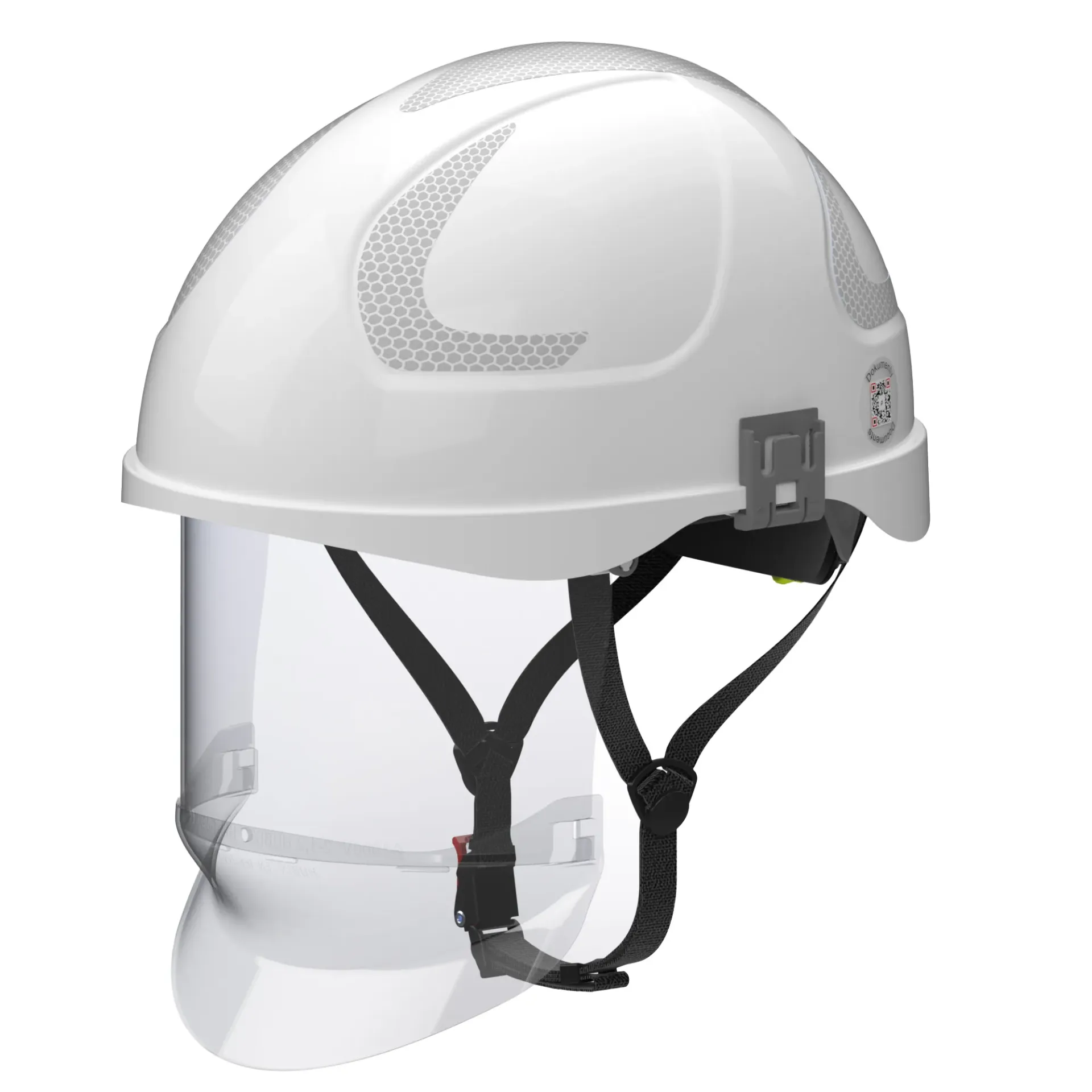

ABS safety helmet with integrated face shield, specially designed for the electrical industry, providing effective protection against electric arcs caused by short circuits.
-
Maximum service voltage: 1000 Vac / 1500 Vdc
-
Test voltage: 5000 Vac
-
Withstanding voltage: 10,000 Vac
-
4-point anchorage suspension system
-
Size adjustment: 53 to 63 cm
-
Adjustment by ratchet system
-
4-point chin strap with quick release
Helmet compliance:
-
Electrical insulation according to EN 397: 440 Vac
-
Electrical insulation according to EN 50365: 1000 Vac / 1500 Vdc
-
Class 0 (double triangle symbol)
-
Low temperature resistance: -40°C
-
LD: lateral deformation resistance
-
MM: resistance to molten metal projections
-
ANSI Z89.1:2014 – Type 1 – Class E (20 kV)
Integrated face shield compliant with:
-
EN 166
-
EN 170
-
GS ET 29 (IEC61482-1-2) – CE
