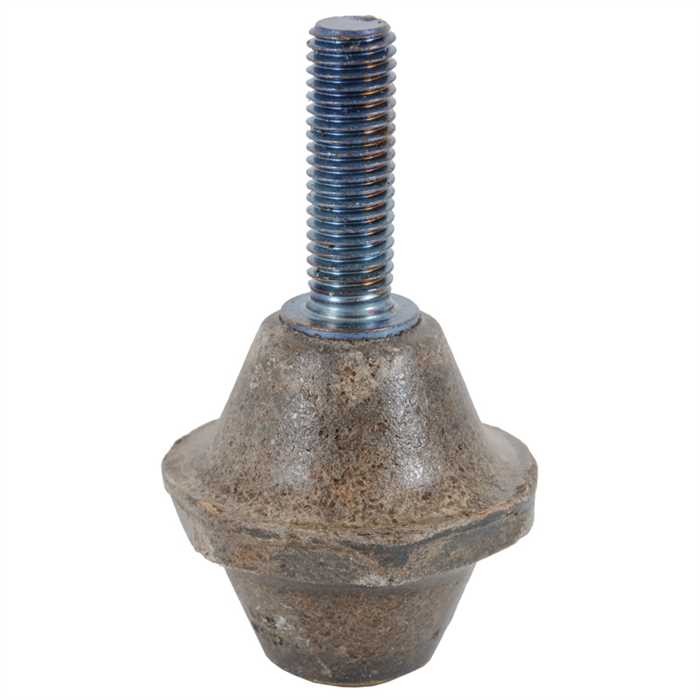

Insulator in micaver for high temperatures Height 60 mm - with nickeled steel inserts: One side female M14 - other side male M14 passing out 45 mm Conform RoHS

Insulator in micaver for high temperatures Height 60 mm - with nickeled steel inserts: One side female M14 - other side male M14 passing out 45 mm Conform RoHS

0.00 € 0.00 €

  • Height
  • Power frequency voltage
  • Top insert
  • Bottom insert (hex)
  • Insert material
  • Twist
  • Tensile load
  • Creepage distance
  • Diameter
  • Material
  • Flexural
Add to cart
Add to wishlist
General conditions
Delivery time: 2-3 working days
Contactez-nous

Internal Reference: MV65G
Variants Default Code: MV65G

Specifications

Height 60 mm
Power frequency voltage 27 kV
Top insert M14x45
Bottom insert (hex) M14
Insert material Nickel-plated steel
Twist 14 daN.m
Tensile load 28000 N (2800 daN)
Creepage distance 75 mm
Diameter 60 mm
Material Mica
Flexural 7000 N (700 daN)
